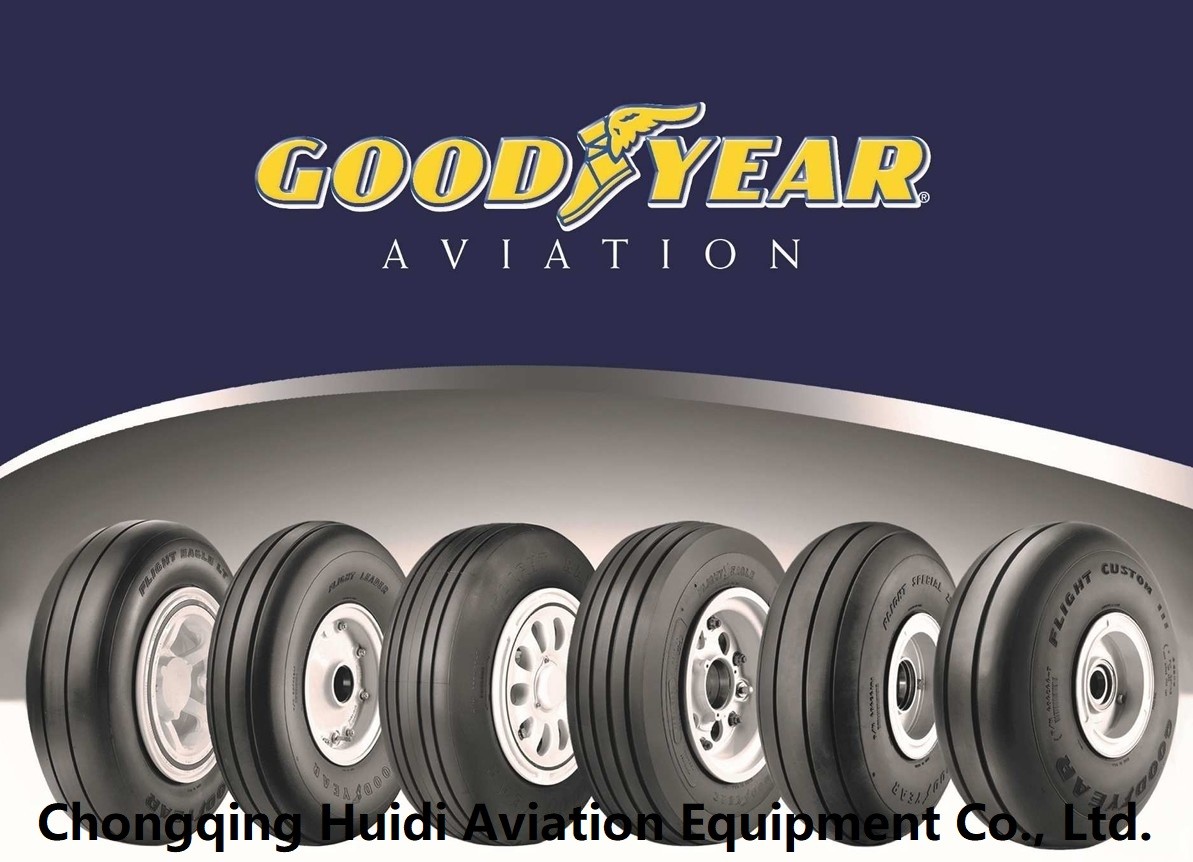

Goodyear Aviation Tires for Airbus A320 Aircraft
| Place of Origin | America |
|---|---|
| Brand Name | Goodyear |
| Certification | FAA |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Custom good year aviation tires,A320 good year aviation tires,A320 goodyear radial tires |
||
|---|---|---|---|
Product Description
goodyear General aviation tyres for Airbus A320 aircraf(including the flight radial tire)
Chongqing Huidi Aviation Equipment Co., Ltd. is based on China's general aviation market, focusing on providing engines, avionics, auxiliary fuel, tires, tools, aviation materials, equipment, etc. to domestic aviation colleges, general aviation companies, 145 units, aircraft design institutes and manufacturers, and equipped with professional technical personnel to provide technical support.
Airbus A320 main wheel new tire number :467002-6
| Size | Ply | SpeedRating/Unit | TT/TL |
|
30X8.8R15 46X17.0R20 |
16 30 |
225 mph 225 mph |
TL TL |
| Part Number | Manufacturer | Model | Position |
|
309Q62-1 467Q02-3 |
Airbus Airbus |
A320 A320 |
Nose Main |
Technical parameters of A320 Goodyear aviation main wheel tire
| Installation position | A320 main wheel | P/N | 467Q02-6 |
| Size | 46X17.0R20 | Rated level PR | 30PR |
| Rated speed MPH | 225MPH | Rated load RL | 46000 pounds |
| Rated air pressure RP | 225PSI | Maximum number of overhaul | 3 times |
| The original depth of the central groove of the tread of new and reconditioned tyres | 0.5 | ||
| Average weight of new tires | 160.4 LBS ~72.9 kg | ||
Goodyear flight radial tire

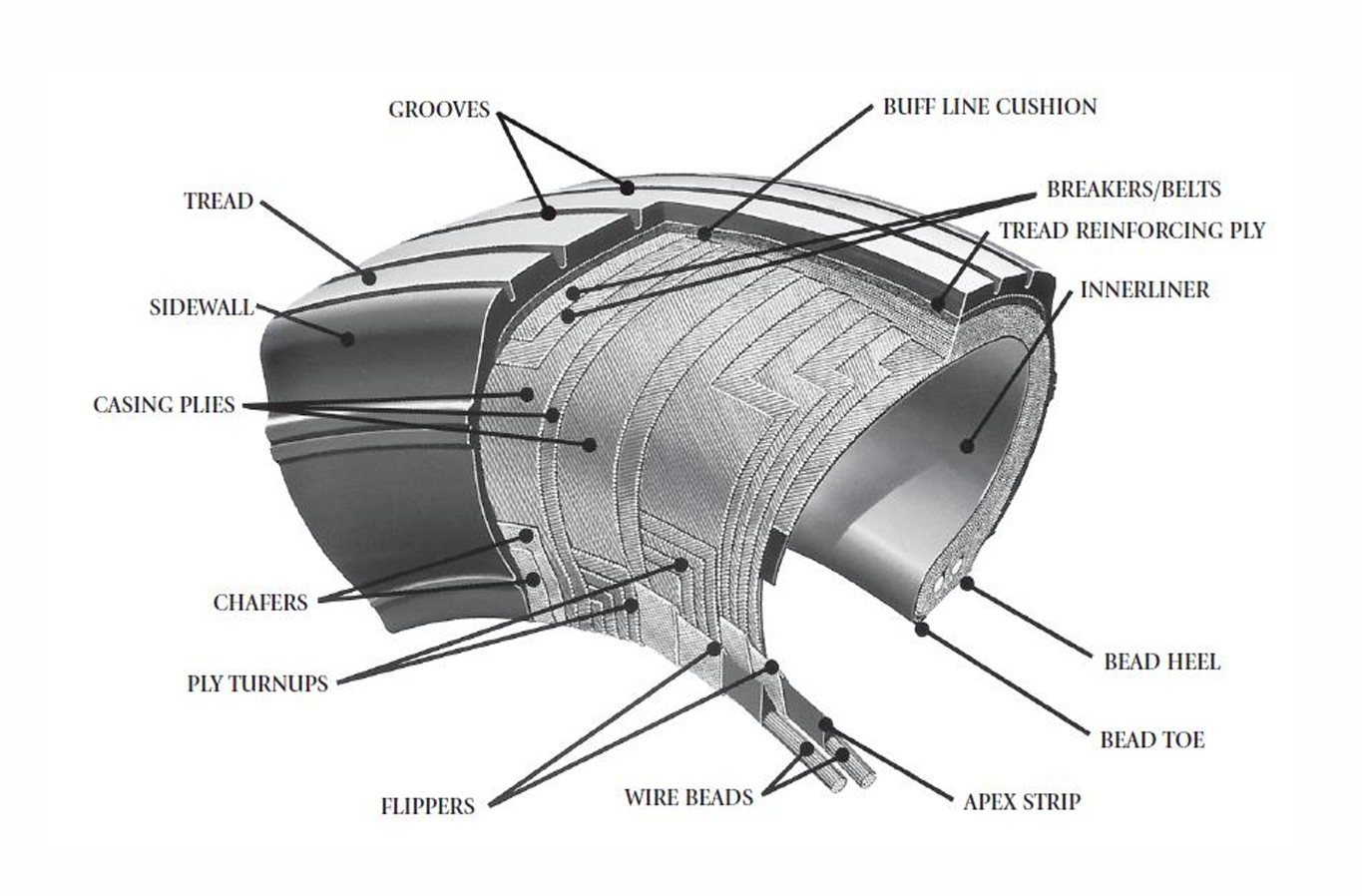

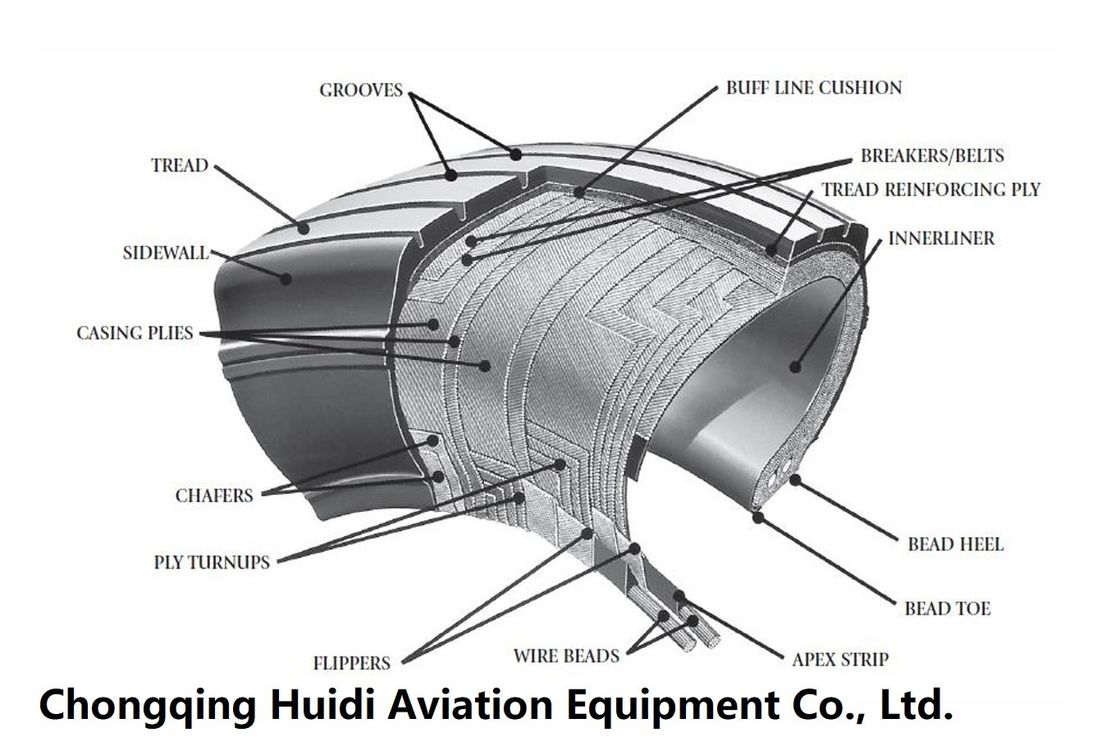

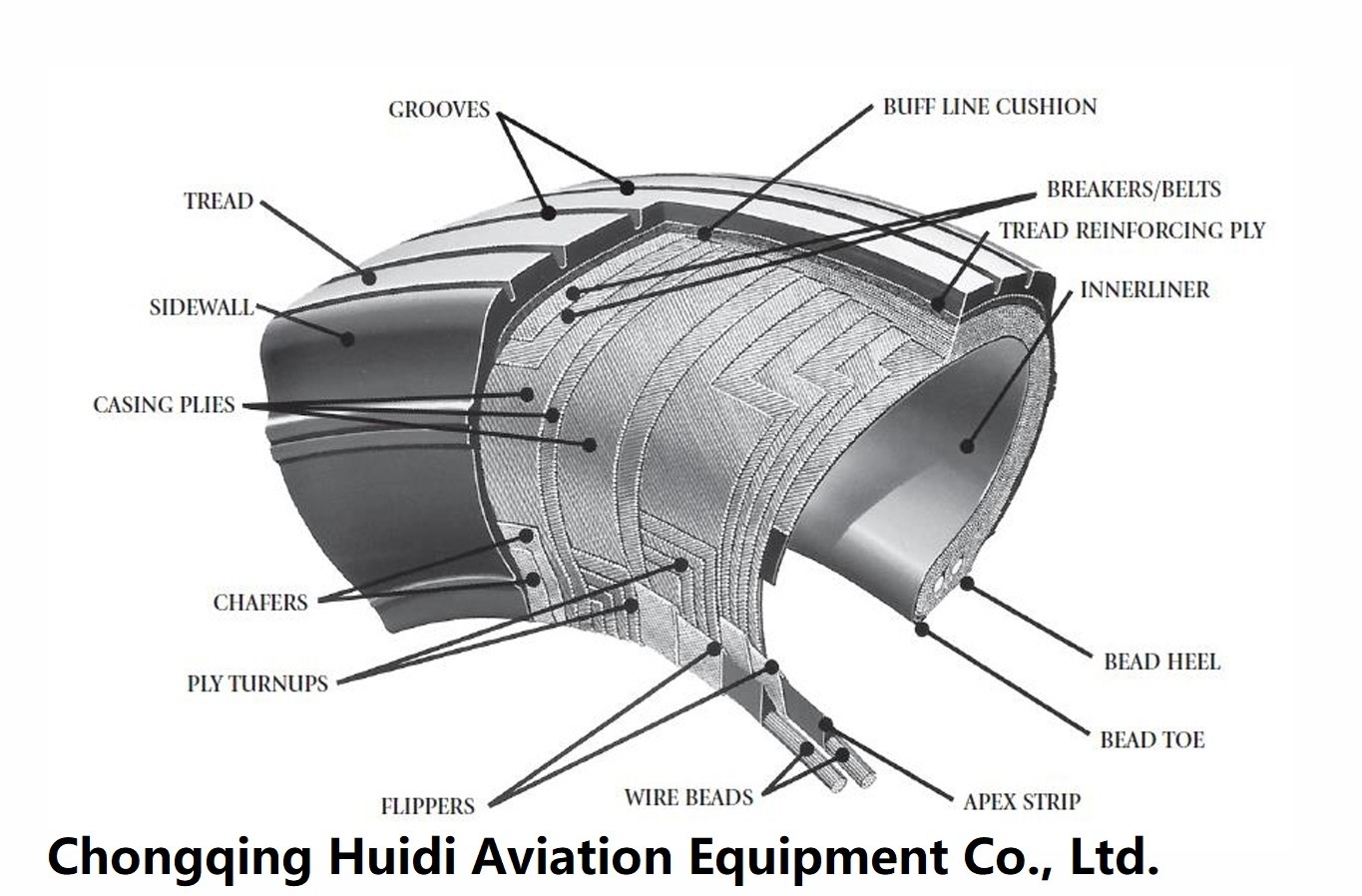

The Goodyear Flight Radial is one of Goodyear's most advanced aerospace products, with technology and features that support dimensional stability for extended service life and improved cutting resistance. The radial structure of the tire facilitates more landings, and the optimized bead design reduces weight.
Main wheel tire part number: 467Q02-6
| performance |
parameter |
| Center line anti-slip depth (in inches) | 0.50 |
| Nominal weight (in pounds) | 160.4 |
| inflation diameter (in inches) | 46.17 |
| Section width (in inches) | 17.24 |
| Rated load (in pounds) | 46,000 |
| rated inflation (psi) | 222 |
Main wheel tire part number: 309Q62-1
| Tire size | 30x8.8R15 |
| Feature |
1. Strong, rigid tread belt reinforced rubber. 2. Radial Tires 3. Average weight: 50 LBS |
